1.0 INTRODUCTION

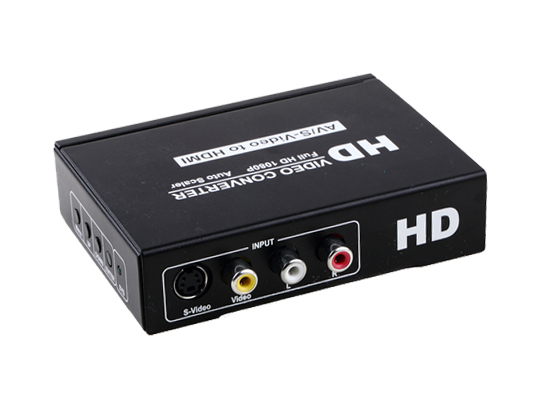

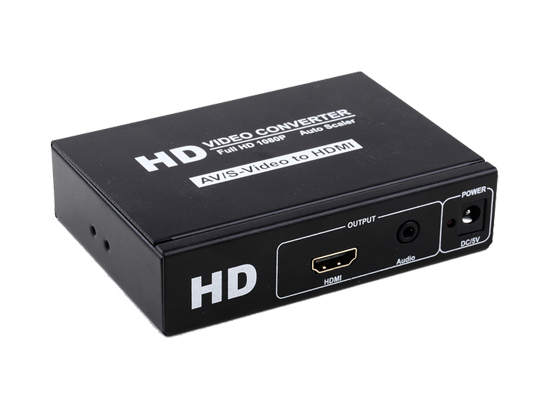

This CVBS or S-Video + R/L to HDMI +audio converter is designed to make your A/V equipment more comfortable, more productive and less expensive. It is a unique device that converts an analog CVBS, S-VIDEO and AUDIO (L/R) signal to an HDMI signal. This product not only meets the ideal image of the HDTV but also meets the need of the enthusiasts’ requirement for audio. It improves the interlaced video signal into 720P progressive signal.
This CVBS or S-Video + R/L to HDMI Converter offers solutions for noise, space and security concerns, data center control, information-distribution, conference-room presentation, school and corporate training environments.

FEATURES

　　Install in seconds, no need of setting.
　　Auto detect the input resolution, no need of setting.
　　Supports convert CVBS video and R/L audio into complete HDMI.
　　Supports convert S-video video and R/L audio into complete HDMI.
　　Supports highest video resolution up to 1080p
　　Supports 165MHz/1.65Gbps per channel (6.75Gbps all channel) bandwidth.
　　Supports 8bit per channel (24bit all channel) deep color.
　　Supports OSD( On Screen Display ) menu operation.

PACKAGE CONTENTS

Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton:

 Main unit
 5VDC Power Supply
 User’s Manual
